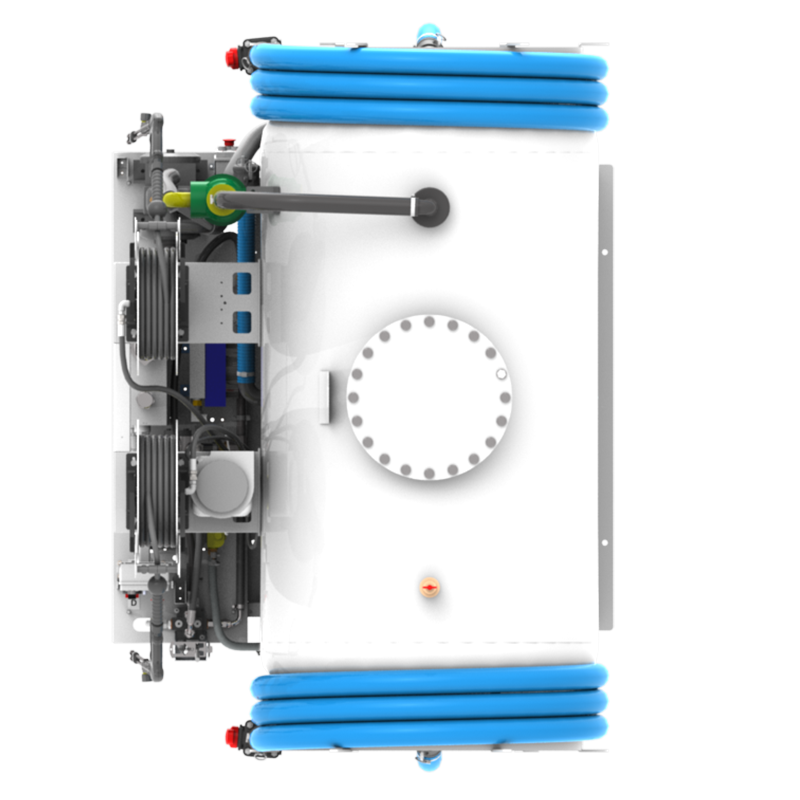

TRK 2000T P2

TRK 1100T P2 and TRK 2000T P2 have features and optimizations that make them particularly suitable for the execution of the service performed by a dedicated vehicle. They can be easily installed on vehicles up to 6.0 tons. Their transversal positioning allows the loading of extra portable restrooms on the truck’s flatbed, while their dual-side service permits operators to use the units without any need to move the vehicle depending on the location of the portable restrooms. The control panel and suction/washing operations are immediately on/off when the PTO is activated/deactivated.

White

Tecnical specification

  • Height 1.830 mm / 72.04”
  • Width 2.100 mm / 82.67”
  • Length 1.780 mm / 70.07”
  • Diameter 1.300 mm / 51.18”
  • Gray water capacity 2.000 L / 528.34 gal.
  • Fresh water capacity 580 L / 153.22 gal.
  • Weight in running order 620 kg / 1366.87 lb.

Optional accessories

  • Deodorizing control system to spread deodorant fragrances during suction
  • High pressure water pump (11 L/min.-2.90 gal./min. - 170 bar/2465.64 psi)
  • Automatic hose reels with 20 m/787.40’’ washing hoses
  • Electric drive of the sanitary concentrate
  • 19 L/5 gal. sanitary concentrate tank
  • Magnetic work spotlight (radio-controlled)

Material used

  • Main tank body made of carbon steel
  • Fresh water tank in semi-transparent plastic material

Features include

  • No. 2/3 sight glass bowls placed on both sides of the gray water tank to check the level
  • No. 2 gray water suction hoses of 12 m/472.44” complete with syringes
  • Ball overflow valve
  • Siphon valve
  • Manhole on the upper part of the gray water tank to allow operators to check the inside and clean it in case of extraordinary maintenance operations
  • Safety relief valve
  • Courtesy night light, placed under the washing hose reels and controlled by a switch, useful to light the mechanics and the controls of the suction groups
  • LED work light with 15 m/590.55’’ automatic cable reel located under the hose reel to enlighten the inside of the portable restrooms
  • Annovi Reverberi high pressure water pump (15 L/min.-3.96 gal./min. @ 150 bar -2175.57 psi)
  • 10 L/2.64 gal. hydraulic oil tank with magnetic cap
  • Cartridge oil filter
  • Air-oil heat exchanger with electric fan
  • Vacuum pump mod. BP MEC1600P (1.980 L/min. - 523.06 gal./min.)
  • No. 2 double barrel washing guns with high pressure nozzle and low pressure outlet
  • Valve on the washing lance to select the high- or low-pressure water supply (high pressure for washing portable restrooms and low for filling the restroom tanks and those of the hand wash sinks)
  • Vacuum pump filter-silencer
  • No. 2 automatic hose reels with 15 m/590.55’’ washing hoses
  • Sanitary concentrate tank (5 L/1.32 gal. capacity)
  • Gray water tank body made of carbon steel
  • No. 3 plastic level sight glasses on the fresh water tank to check its level
  • Lightweight fresh water tank in semi-transparent plastic material
  • Electric drive controls on the left and right side of the unit
  • Hour counter device

Downloads

The Transversal Units with Hydraulic System and Remote Control

TRK vacuum tank units come as standard with an electronic and remote control system that allows faster operations at distance from the vehicle, a reduced capacity oil tank to minimize their weight, an air-oil heat exchanger that avoids the overheating of the hydraulic oil and optimizes the thermal range of the hydraulic system operations, lights to work easily in dark places or at night, and an hour counter device that indicates the time of use of the units.

Efficiency and Operator Safety

Their reduced weight and the electronic and remote control system guarantee a net economic saving for each service as well as making the daily work of the operators easier, less tiring and worry-free. To ensure the highest level of safety for both units and operators, the emergency stop push buttons on the remote control and on the control panel ensure immediate shutdown whenever an emergency arises.

Tank Capacities

The fresh water and gray water tanks of TRK 2000T P2 contain 580 liters/153.22 gallons of fresh water and 2.000 liters/528.34 gallons of gray water.
The deodorizing control system and/or the combined operation system can be added as optional accessories along with other accessories to facilitate and improve the service of your portable restrooms.
