This image is for illustrative purposes.

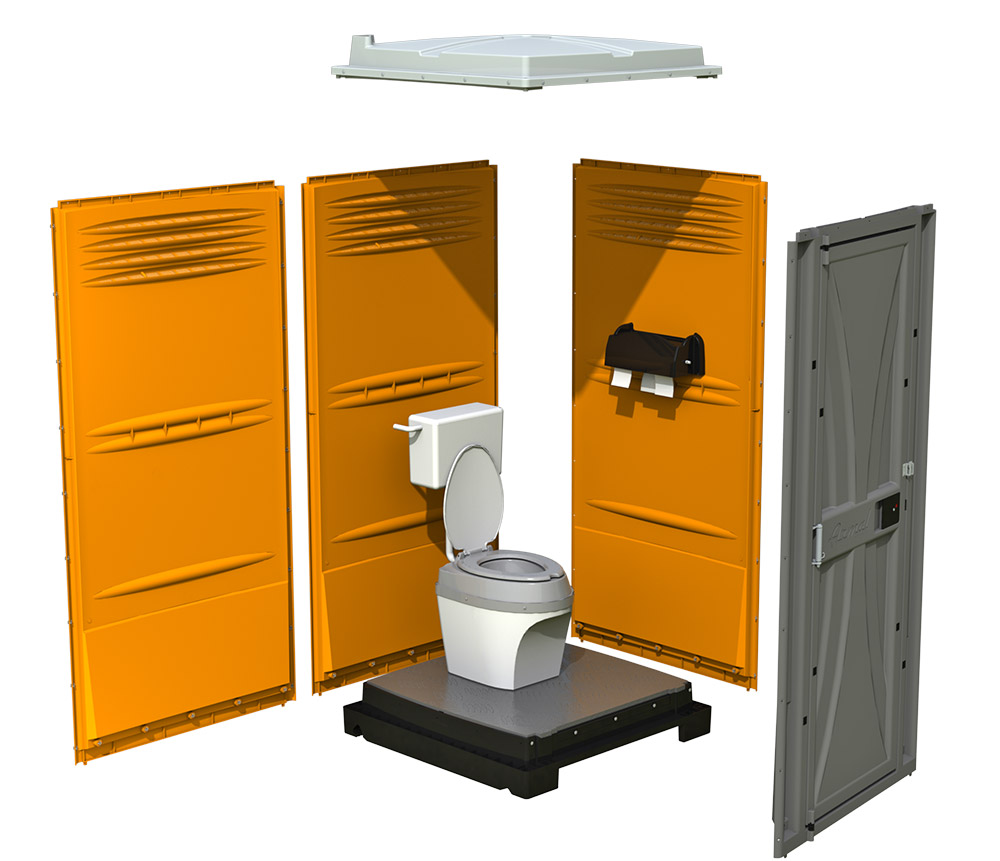

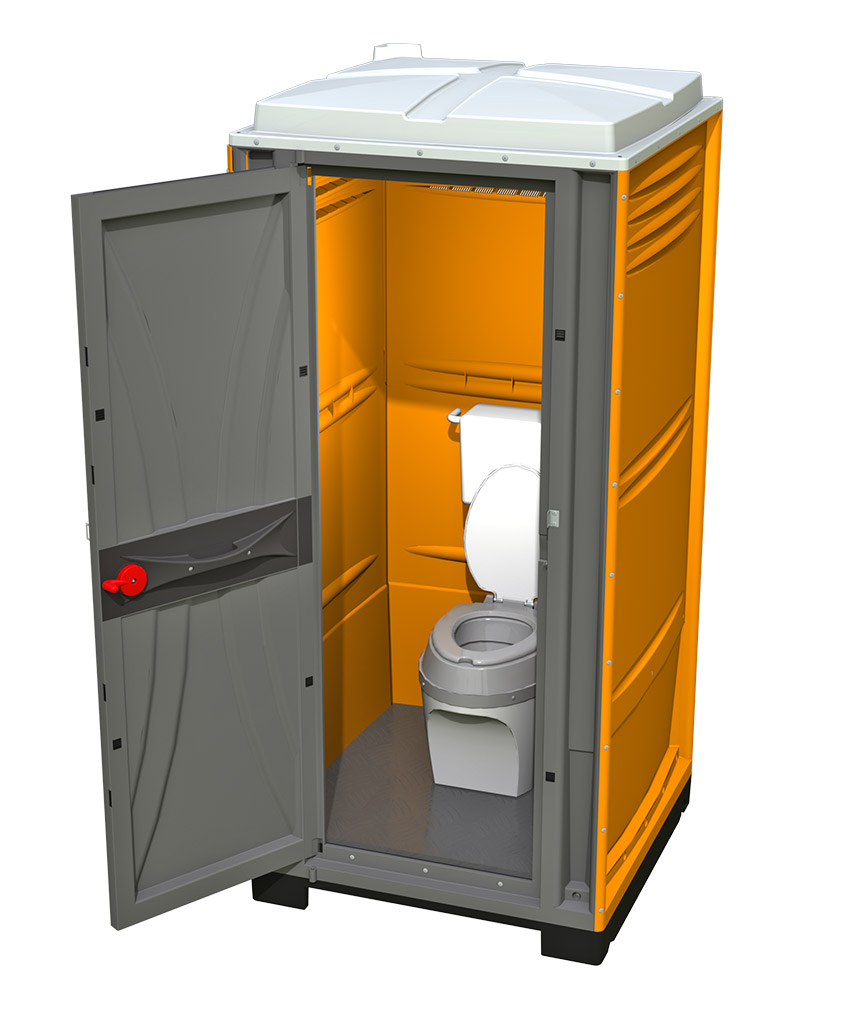

CUBE Mains-connected Portable Restroom

CUBE mains-connected restrooms are plumbed into the water supply and sewage system, ideal for working sites, urban areas and other long-term placements.

Many other color combos available, just ask!
(Min. order applies)

Standard colors

Monochrome

Mixed and Matched (select a color for each element)

Preview color combinations

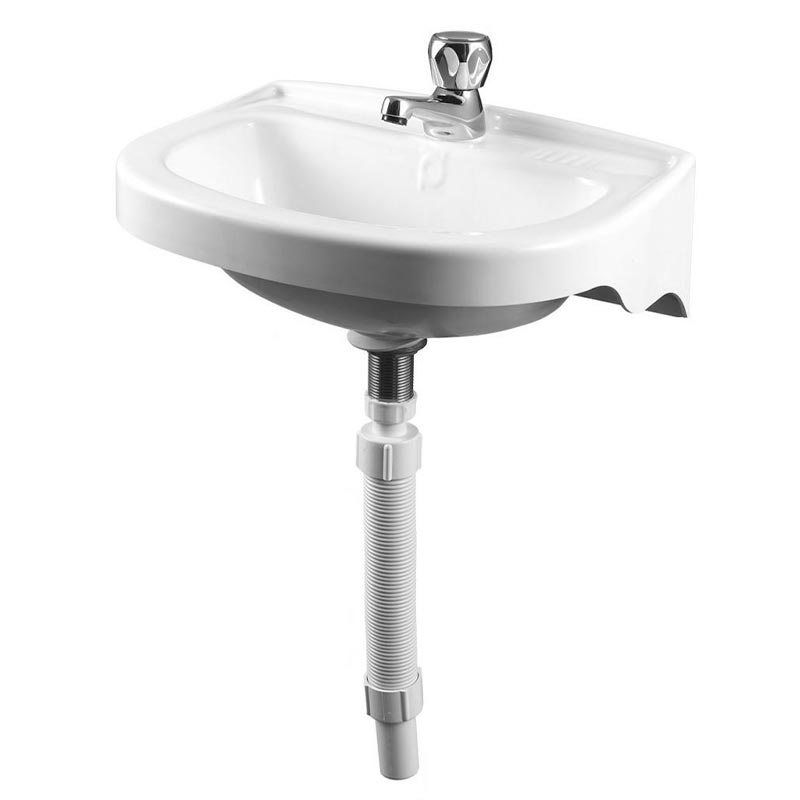

Connectable Hand Wash Sink

Kit for water supply and sewage system connection

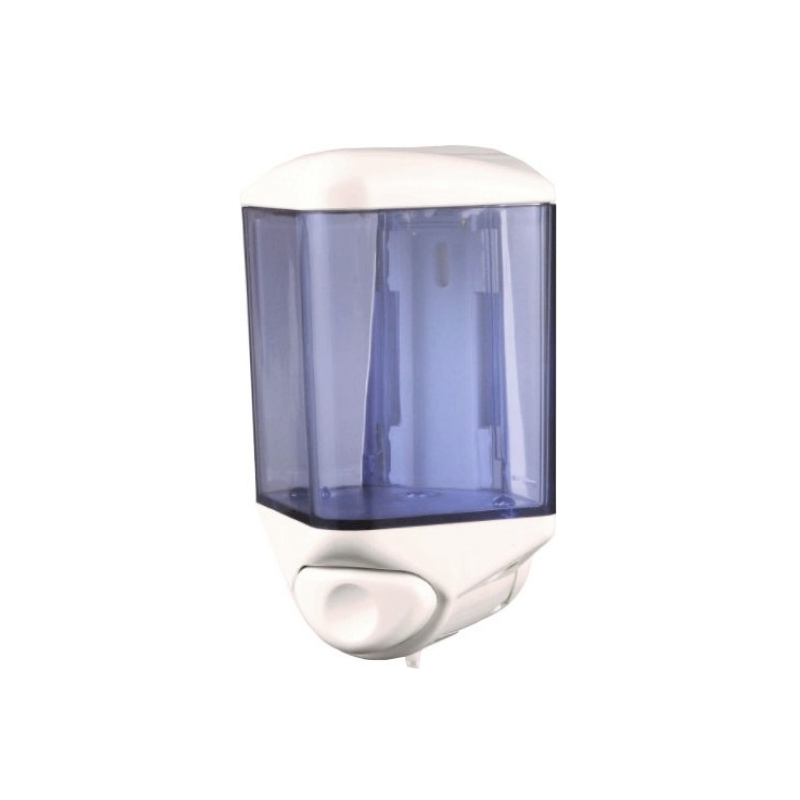

Basic Soap & Sanitizer Dispenser

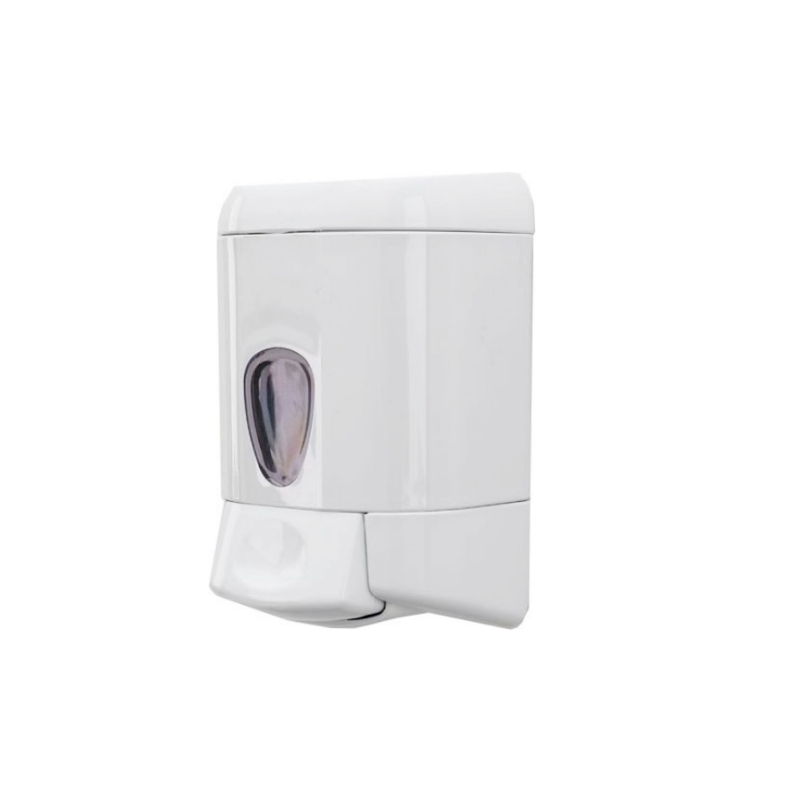

Vip Soap & Sanitizer Dispenser

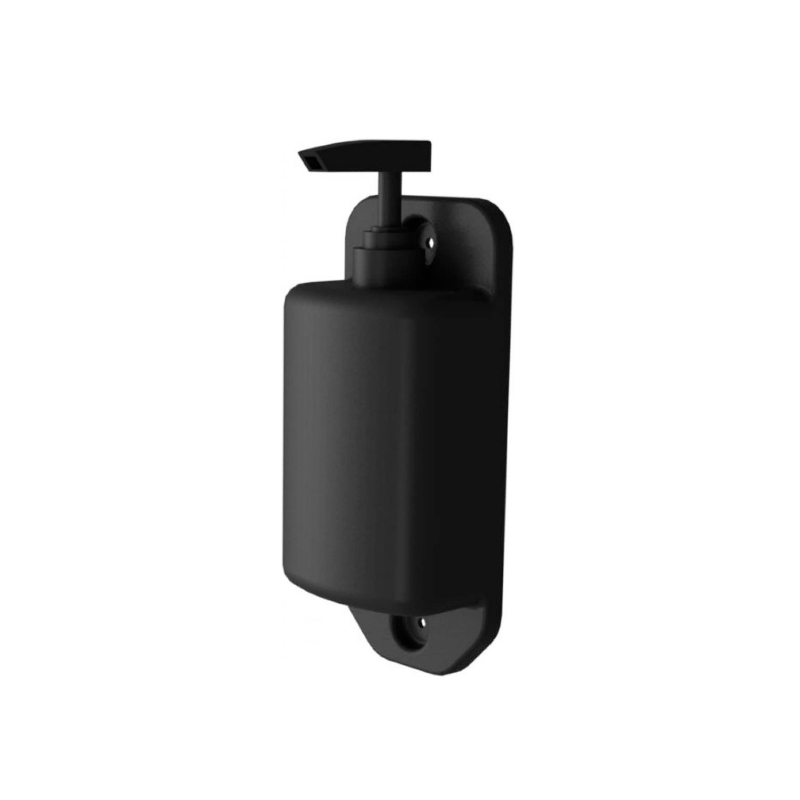

Mini Soap & Sanitizer Dispenser

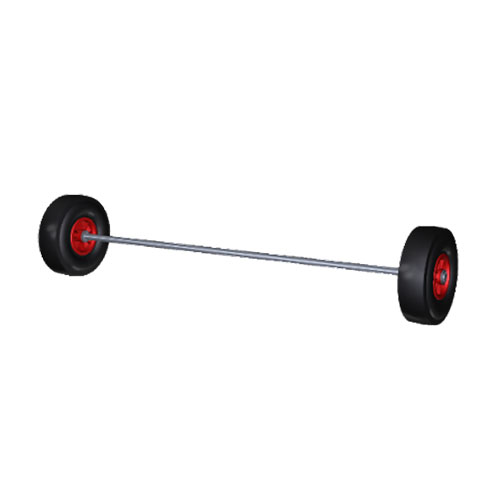

Transport Dolly

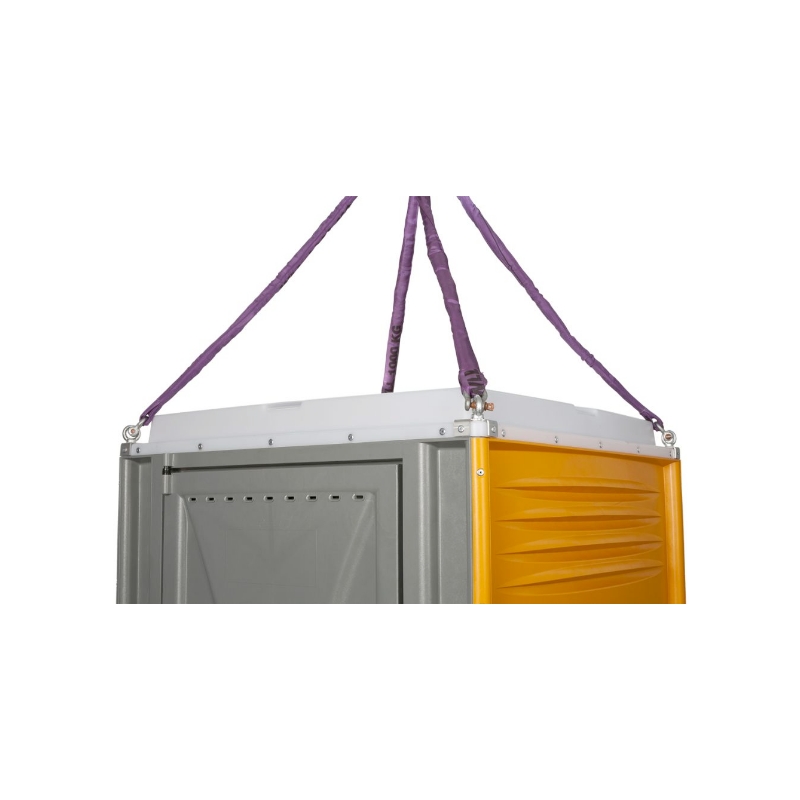

Lift Kit

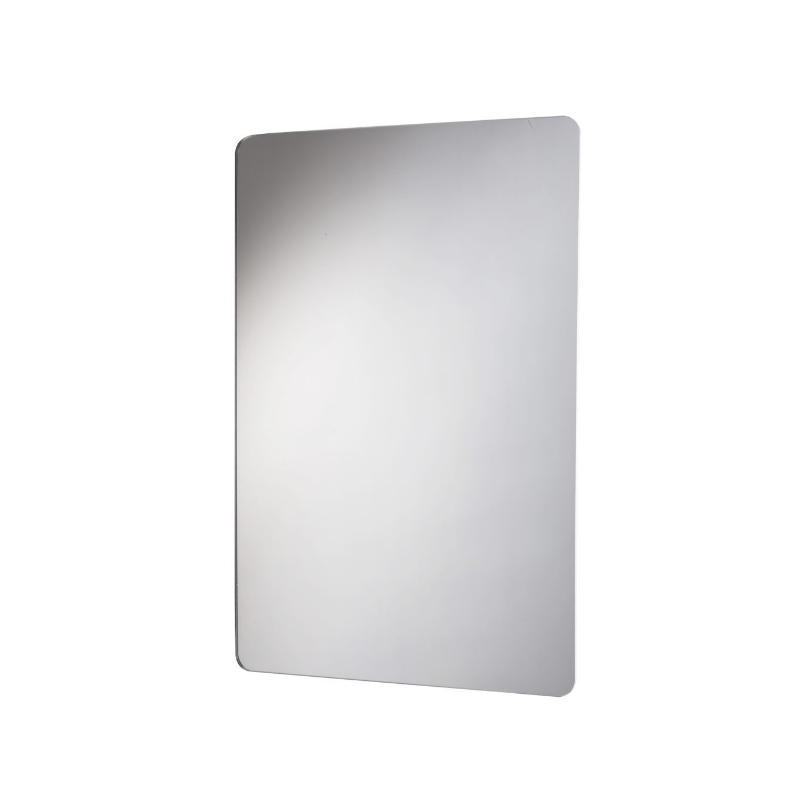

Mirror

Riveting machine

Assembling service

Technical specifications

  • Height (internal – external) 2.120 – 2.330 mm / 83.46” – 91.73”
  • Width (internal – external) 1.000 – 1.060 mm / 39.37” – 41.73”
  • Length (internal – external) 1.000 – 1.060 mm / 39.37” – 41.73”
  • Step height 200 mm / 7.87”
  • Seat height 450 mm / 17.71”
  • Outlet ø 110 mm / 4.33”
  • Fresh water wall cistern capacity from 6 L/1.58 gal. to 9 L/2.38 gal.
  • Weight (empty) 81 kg / 178.57 lb.
  • Door opening 600 mm / 23.62”

Material used

  • High density polyethylene with anti-UV treatment
  • Translucent polyethylene anti-UV treated roof
  • OSB (Oriented Strand Board) base with non-slip PVC floor
  • Sanitary wares in ABS

Features include

  • Wall cistern with fresh water capacity from 6 L/1.58 gal. to 9 L/2.38 gal.
  • OSB (Oriented Strand Board) base with non-slip PVC floor
  • Roof cap
  • Coat/tool-belt hook
  • 3-rolls toilet paper holder
  • Built-in irremovable aeration vents to protect the cabin from rain and ensure good aeration inside the restroom
  • Red/green occupied/vacant indicator
  • Adjustable wind resistance device fitted to the door
  • Integrated hinges for padlock

Standard colors

  • Bright Orange
  • Ash Grey
  • Bright Red
  • Medium Blue
  • Green
  • Apple Green
  • Pine Green
  • Caramel
  • Vanilla
  • White

POP colors

  • Turquoise
  • Green-Lime
  • Fuchsia
  • Chrome Yellow
  • Brick Red

Downloads

ARMAL HYDRO COLLECTION: THE BEST ALTERNATIVE TO SELF-CONTAINED CABINS WHERE WATER AND SEWAGE ARE AVAILABLE

Armal CUBE mains-connected portable restroom includes a series of interior components and accessories that allow easy plumbing to the water supply and sewage system.

The new water tank is ideal for low - or high - position installations and works by pressing a button or a sturdy cord, respectively.

MAINS-CONNECTED SITTING RESTROOM

CUBE mains-connected portable restroom is equipped with a sitting bowl. The sanitary wares in ABS material make the restroom lighter and easy to be handled and installed. An in-unit connectable hand wash sink can be integrated as an option.

You may also be interested in

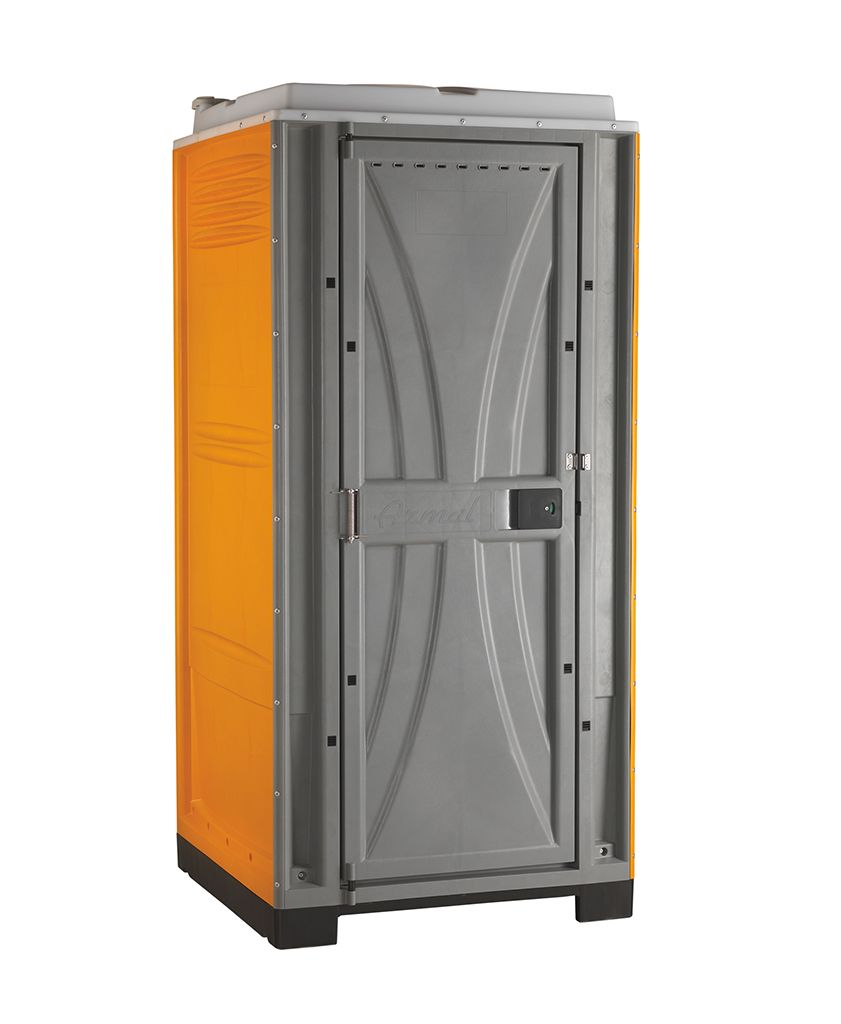

Cube Portable Restroom

View product

HERGO Portable Restroom

View product

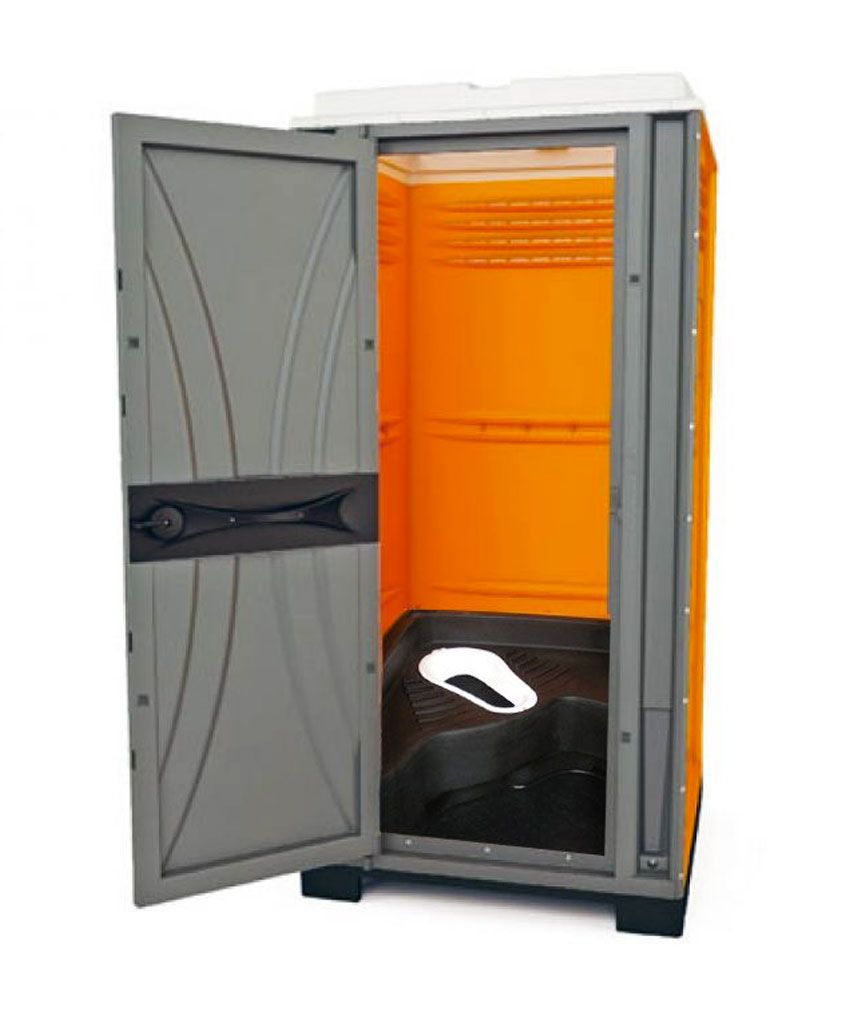

CUBE Portable Restroom with Squatting Tank

View product

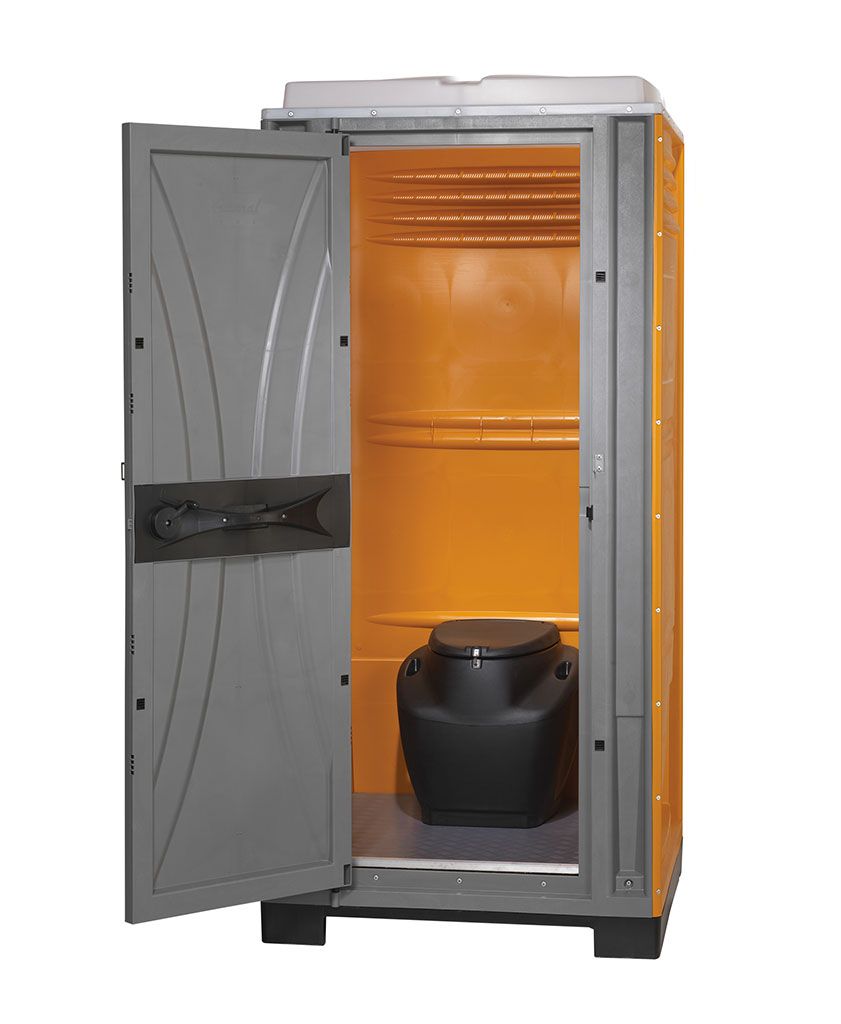

Cube Portable Restroom with Removable Tank

View product

CUBE Portable Restroom with Removable Tank and Flush

View product

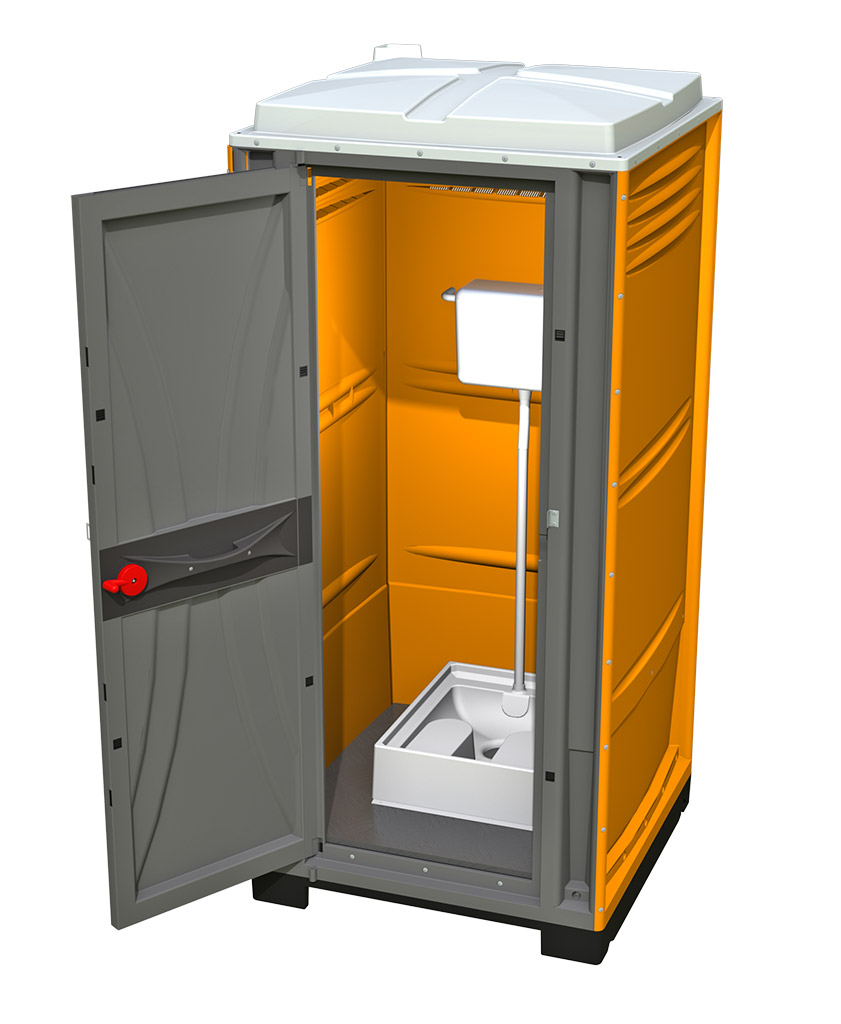

CUBE Mains-connected Portable Squatting Restroom
