CUBE

Mains-connected

Portable

Squatting

Restroom

CUBE

mains-connected

portable

squatting

restrooms

are

plumbed

into

the

water

supply

and

sewage

system.

The

squatting

tank

practical

and

easy-to-clean.

ARMAL

HYDRO

COLLECTION:

THE

BEST

ALTERNATIVE

TO

SELF-CONTAINED

CABINS

WHERE

WATER

AND

SEWAGE

ARE

AVAILABLE

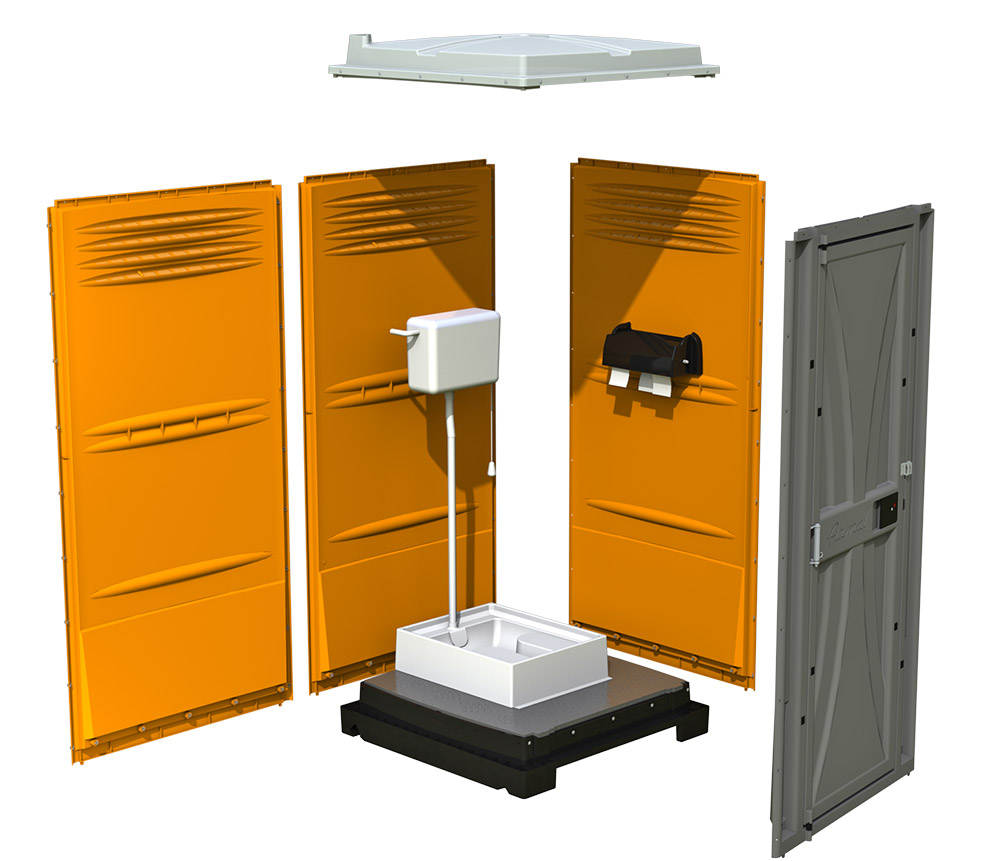

Armal CUBE mains-connected squatting restroom includes a series of interior components and accessories that allow easy plumbing to the water supply and sewage system.

MAINS-CONNECTED

SQUATTING

RESTROOM

CUBE mains-connected portable restroom is equipped with squatting tank. The sanitary wares in ABS material make the restroom lighter and easy to be

handled and installed. An in-unit connectable hand wash sink can be integrated as an option.

Technical specifications

Height (internal – external) 2.120 – 2.330 mm / 83.46” – 91.73”
Width (internal – external) 1.000 – 1.060 mm / 39.37” – 41.73”
Length (internal – external) 1.000 – 1.060 mm / 39.37” – 41.73”
Step height 200 mm / 7.87”
Seat height 150 mm / 5.90”
Outlet ø 100 mm / 3.93”
Fresh water wall cistern capacity from 6 L/1.58 gal. to 9 L/2.38 gal.
Weight (empty) 79 kg / 174.16 lb.
Door opening 600 mm / 23.62”

Material used

High density polyethylene with anti-UV treatment
Translucent polyethylene anti-UV treated roof
OSB (Oriented Strand Board) base with non-slip PVC floor
Sanitary wares in ABS

Features include

Wall cistern with fresh water capacity from 6 L/1.58 gal. to 9 L/2.38 gal.
OSB (Oriented Strand Board) base with non-slip PVC floor
Roof cap
Coat/tool-belt hook
3-rolls toilet paper holder
Built-in irremovable aeration vents to protect the cabin from rain and ensure good aeration inside the restroom
Red/green occupied/vacant indicator
Adjustable wind resistance device fitted to the door
Integrated hinges for padlock
