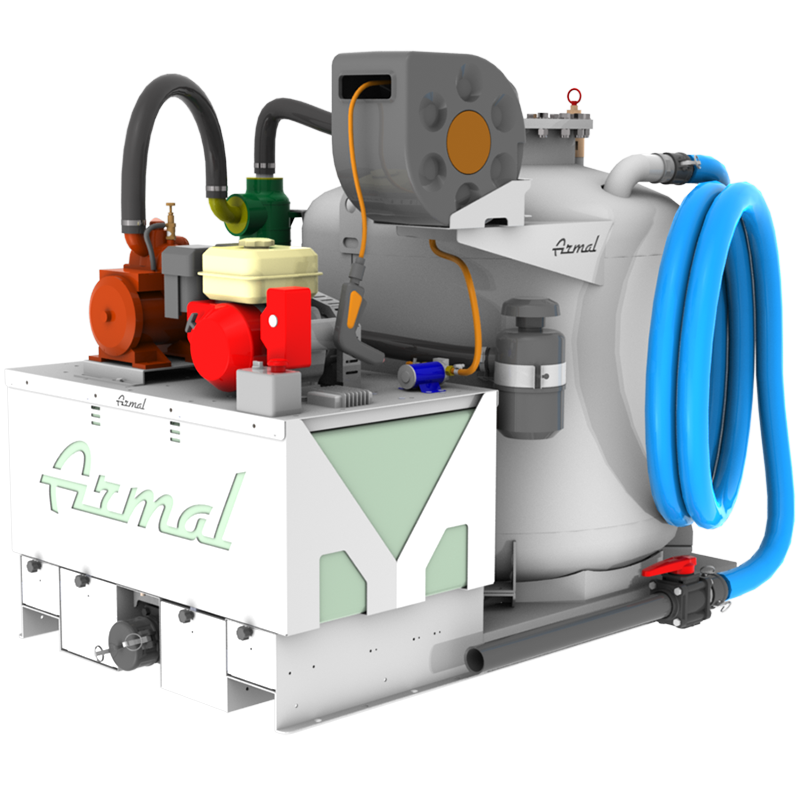

EASY 600V B3

Tecnical specification

• Height 1.500 mm / 59.05‘‘
• Width 1.010 mm / 39.76‘‘
• Lenght 1.650 mm / 64.96‘‘
• Diameter 1.000 mm / 39.37‘‘ (vertical)
• Gray water capacity 600 L / 158.50 gal.
• Fresh water capacity 200 L / 52.83 gal.
• Weight in running order 440 kg / 970.05 lb.

Material used

• Main tank body made of carbon steel
• Fresh water tank made in plastic material

Features include

• Safety relief valve
• Manhole on the upper part of the gray water tank to allow operators to check the inside and clean it in case of extraordinary maintenance operations
• Siphon valve
• Ball overflow valve
• No. 1 automatic hose reel with 10 m/393.70’’ washing hose (low pressure)
• Gasoline engine with electric and recoil start
• Vacuum pump mod. BP MEC1600P (1.980 L/min. - 523.06 gal./min.)
• Lightweight fresh water tank in plastic material
• No. 1 big sight glass bowl and additional smaller ones in plastic positioned on the gray water tank to monitor its level
• Gray water tank body made of carbon steel
• No. 1 gray water suction hose of 9 m/354.33’’ complete with syringe
• Vacuum pump filter-silencer
• Electric pump (DC 12V - 8 L/min. - 2.11 gal./min. @ 1.5 bar / 21.75 psi)
