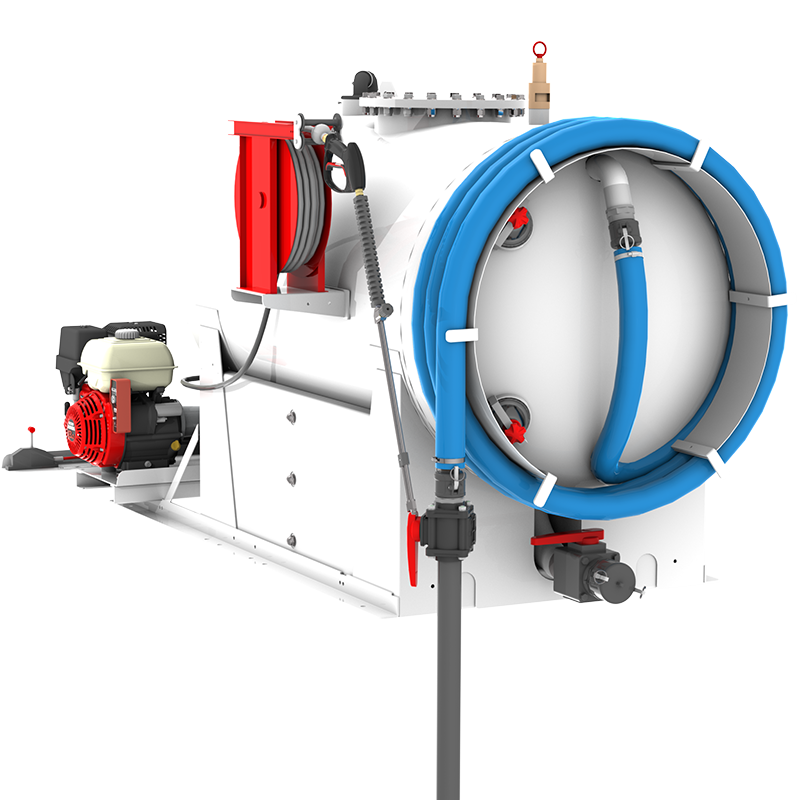

SUN 2000L M1

Technical specification

• Height 1.830 mm / 72.04‘‘
• Width 1.960 mm / 77.16‘‘
• Length 2.490 mm / 98.03‘‘
• Diameter 1.300 mm / 51.18‘‘
• Gray water capacity 2.000 L / 528.34 gal.
• Fresh water capacity 580 L / 153.22 gal.
• Weight in running order 840 kg / 1851.88 lb.

Optional accessories

• High pressure water pump (11 L/min.-2.90 gal./min. @ 170 bar - 2465.64 psi)
• Automatic hose reel with 20 m/787.40’’ washing hose
• 19 L/5 gal. sanitary concentrate tank

Material used

• Main tank body made of carbon steel
• Fresh water tank in semi-transparent plastic material

Features include

• Manual drive controls on two sides of the unit
• No. 1 automatic hose reel with 10 m/393.70’’ washing hose
• No. 1 double barrel washing gun with high pressure nozzle and low pressure outlet
• Manhole located on the upper part of the gray water tank to allow operators to check the inside and clean it in case of extraordinary maintenance operations
• No. 2 sight glass bowls on SUN 1100L M1 and No. 3 sight glass bowls on SUN 2000L M1 placed on one side of the gray water tank to check the level
• Valve on the washing lance to select the high- or low-pressure water supply (high pressure to wash the portable restrooms and low one to fill the restroom tanks and those of the handwash sinks)
• No. 3 plastic level sight glasses on the fresh water tank to check its level
• Lightweight fresh water tank in semi-transparent plastic material
• Manual hydraulic control valve
• No. 1 gray water suction hose in 9 m/354.33’’ (mod. SUN 1100L M1) or 12 m/472.44’’ (mod. SUN 2000L M1) lengths complete with syringe
• Gray water tank body made of carbon steel
• Safety relief valve
• Ball overflow valve
• Siphon valve
• Sanitary concentrate tank (5 L/1.32 gal. capacity)
• Gasoline engine with recoil start (predisposition for electric start)
• Hydraulic pump
• Hydraulic oil tank (45 L/11.88 gal. capacity)
• Vacuum pump mod. BP MEC1600P (1.980 L/min. - 523.06 gal./min.)
• Magnetic cap for oil tank
• Vacuum pump filter-silencer
