Classic Portable Restrooms

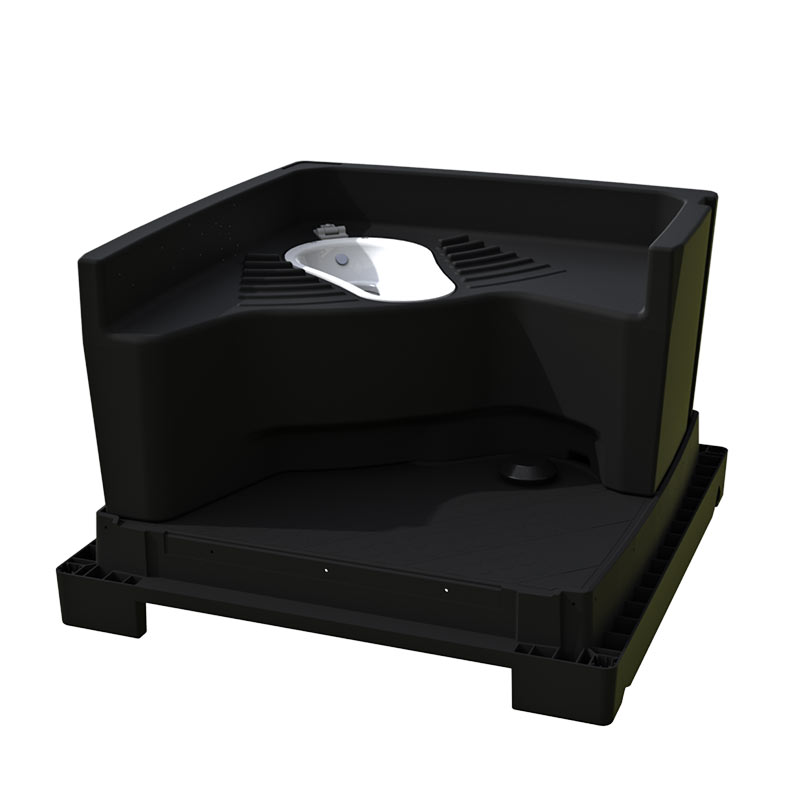

CUBE Portable Restroom with Squatting Tank

The classic CUBE cabin is also available to be set up as a portable restroom with squatting tank. The squatting tank is placed in a corner of the toilet’s interiors to save space within the toilet unit and offers a more comfortable user experience.

Scroll Down

COMFORT AND STURDINESS

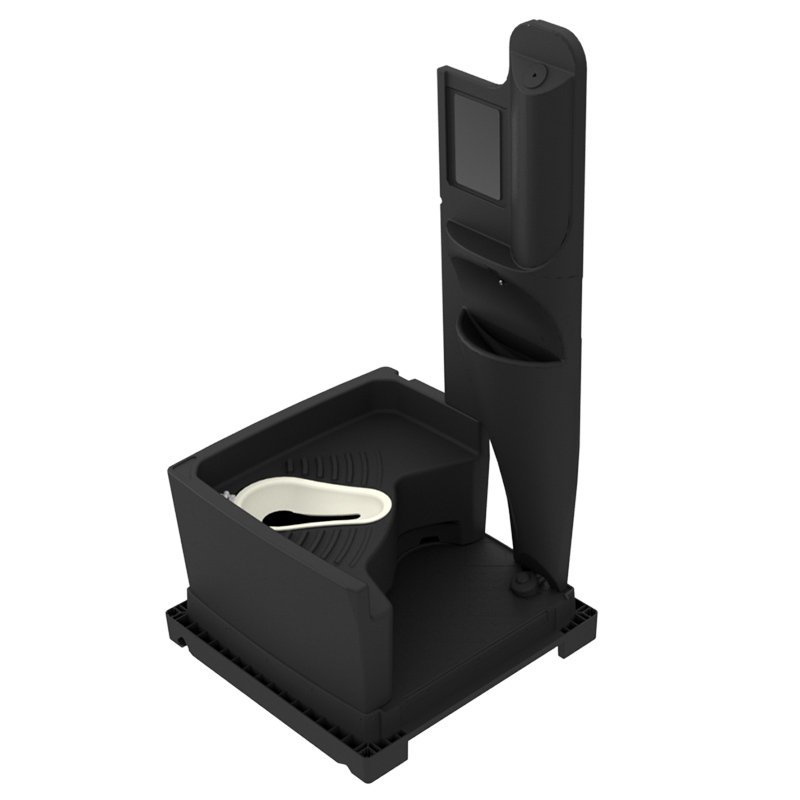

CUBE portable restroom is made to be more comfortable and sturdier for the end-user. The restroom comes with a drop tank as standard and can easily be paired with an external fresh water flushing tank or a recirculating flushing system, both operated by foot pump.

CLASSIC CUBE DESIGN OUTSIDE AND ROBUST SQUAT TOILET INSIDE

CUBE portable with squatting tank features the classic CUBE cabin exterior with its minimal design and a no-touch squatting pan. Using the strongest materials, Armal is able to produce durable and easy-to-clean squat toilets.

Technical specifications

Height (internal – external) 2.120 – 2.330 mm / 83.46” – 91.73”
Width (internal – external) 1.000 – 1.060 mm / 39.37” – 41.73”
Length (internal – external) 1.000 – 1.060 mm / 39.37” – 41.73”
Gray water capacity 210 L / 55 gal. approx.
Step height 200 mm / 7.87”
Seat height 350 mm / 13.77”
Weight (empty) 88,50 kg / 195.10 lb.
Number of uses 220
Door opening 600 mm / 23.62”

Material used

High density polyethylene with anti-UV treatment
Translucent polyethylene anti-UV treated roof
Anti-slip floor in polyethylene

Features include

210 L/55 gal. gray water squatting tank
Anti-slip floor
Coat/tool-belt hook
3-rolls toilet paper holder
Ventilation pipe shaped to the design of the walls to maximize internal space
Built-in irremovable aeration vents to protect the cabin from rain and ensure good aeration inside the restroom
Red/green occupied/vacant indicator
Adjustable wind resistance device fitted to the door
Integrated hinges for padlock
